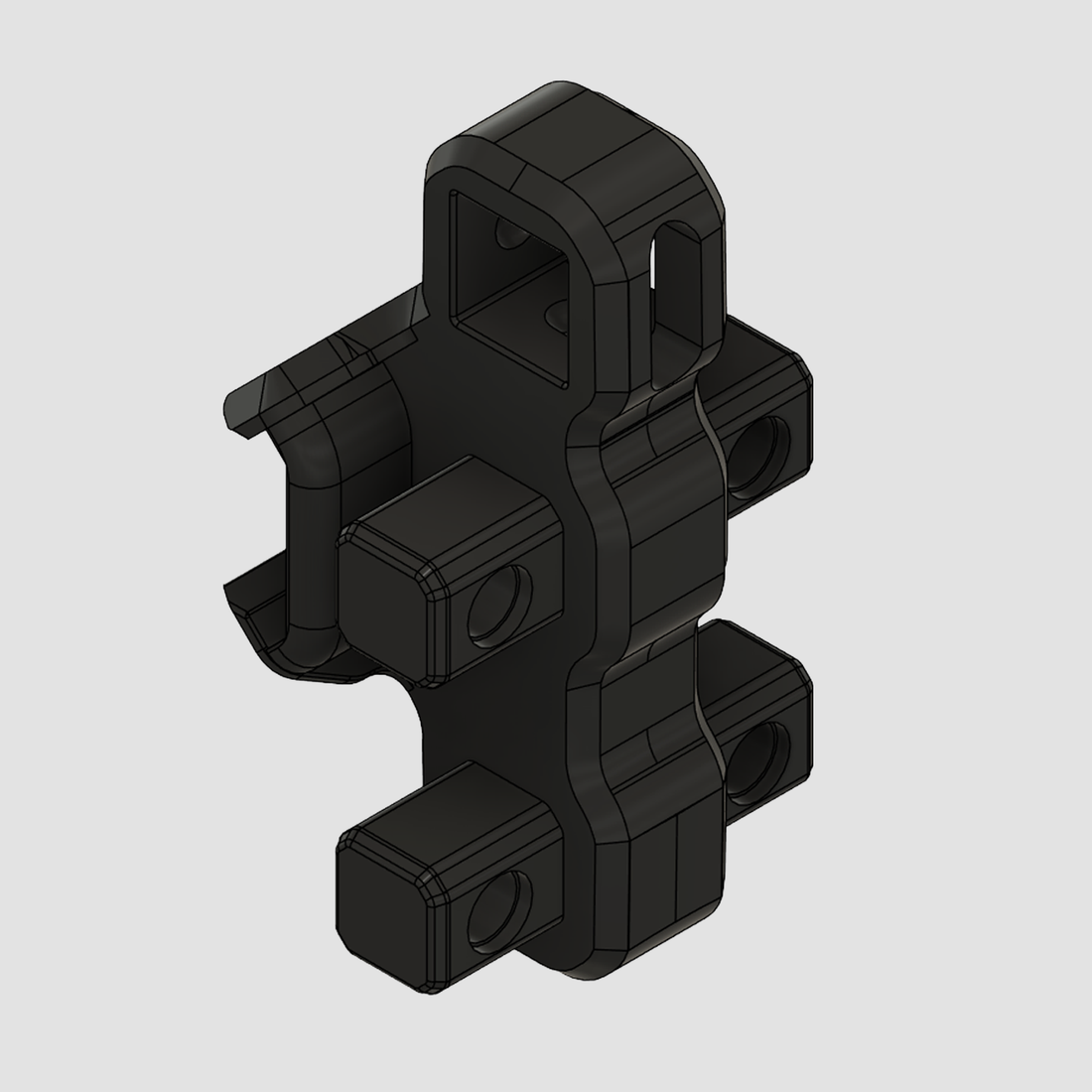

3/8" Socket Holder

This experimental holder is designed to store up to four 3/8" drive sockets directly on the BATTEX system. The design accommodates a wide range of socket lengths, though extremely short or long sockets may not fit optimally.

Optional spring ball plungers can be installed in the provided holes to allow sockets to snap securely into place for retention while still being easy to remove. The top slot also stores a 1/4" hex shank to 3/8" drive adapter, making it easy to switch between bits and sockets while using the BATTEX system.

Recommended Hardware

For socket retention, this design uses 5 × 6 mm spring ball plungers (30N). These plungers create a light detent that allows the sockets to snap into place while remaining easy to remove.

A compatible pack of 5 × 6 mm, 30N spring ball plungers can be found here:
https://www.amazon.com/dp/B0DC3GRCNN

These plungers are also used across several other Mission Labs accessories and are recommended for achieving the intended retention fit.

Disclaimer

The files provided through Mission Labs are experimental designs intended for personal use and modification. These designs have not undergone the same testing or validation as our production products. By downloading, printing, or using these files, you acknowledge that you do so at your own risk.

Mission Tool Company is not responsible for any damage, injury, or performance issues that may result from the printing, modification, or use of these designs. Users are responsible for ensuring their prints are safe and suitable for their intended application.
